Water-based drilling fluids (WBM) remain the preferred choice for many operators due to their cost-effectiveness, environmental friendliness, and ease of disposal. However, when wells reach high temperatures—typically above 150°C (300°F)—selecting an appropriate water-based system becomes significantly more challenging. High temperatures accelerate chemical degradation, destabilize shale formations, reduce viscosity, and impair the performance of traditional polymers.
Choosing the right water-based drilling fluid for high-temperature wells requires a deep understanding of formation conditions, fluid chemistry, temperature tolerance, and the interplay among additives. Below is a comprehensive guide to help drilling engineers, mud specialists, and operators make effective decisions for high-temperature water-based mud design.
High-temperature conditions amplify various downhole stresses on the drilling fluid:
(1) Polymer Degradation
Most commonly used water-based drilling fluid polymers—such as PAC, CMC, and xanthan gum—break down rapidly above 120°C–150°C. Once polymers degrade, viscosity drops, solids suspension becomes unstable, and filtration increases.
(2) Shale Instability
High temperature accelerates:
clay hydration,
shale dispersion,
ionic exchange,
pore-pressure alterations.
This leads to wellbore issues such as sloughing, pack-off, and poor hole cleaning.
(3) Increased Fluid Loss
Temperature thins the filter cake and increases permeability, causing higher fluid loss into formations.
(4) Poor Rheology Control
Most fluids thin (lose viscosity) at elevated temperatures, making cuttings transport in extended-reach or deviated wells more difficult.
Understanding these challenges ensures the formulation is tailored to survive harsh downhole conditions.
Selecting the right WBM begins with determining the Circulating Temperature (CT) and Bottom-Hole Static Temperature (BHST).
Below 120°C (248°F)
Standard polymer systems with additional inhibition usually suffice.
120–150°C (248–302°F)
Requires moderately thermally stable polymers and high-performance fluid loss additives.
150–180°C (302–356°F)
Needs specialized high-temperature polymers, strong shale inhibitors, and robust HT filtration reducers.
Above 180°C (356°F)
Typically beyond the capability of most conventional water-based drilling fluid; requires HTHP stable polymer packages, partially hydrolyzed fluids, or blended organic/inorganic systems.
Accurate temperature assessment helps narrow down suitable fluid families.
(1) Potassium or Sodium Silicate Systems
Silicate systems offer good thermal stability and shale inhibition. They minimize clay swelling and maintain wellbore integrity. However, they require tight pH and mixing control.
(2) High-Temperature Polymer Systems
New-generation synthetic polymers resist thermal degradation at temperatures above 150°C. They provide:
improved fluid loss control,
stable rheology,
low-shear-rate viscosity.
These polymers often replace conventional PAC or CMC in HT wells.
(3) Glycol-Based Inhibitive Systems
Glycol systems reduce shale hydration and capillary pressure effects. High-temperature glycols function up to ~180°C, depending on molecular weight.
(4) Salt-Saturated Systems (NaCl, KCl, CaCl₂)
Salt saturation decreases water activity, aiding inhibition. When combined with HT filtration reducers, these systems can perform well in reactive shale.
(5) Brine-Polymer Systems
Heavy brines (e.g., CaBr₂) can operate at temperatures exceeding 200°C. Enhanced with HT-stable polymers, they provide strong inhibition and density control.
Choosing the core system is the foundation of a successful water-based drilling fluid plan.
High-temperature wells demand specialized additives engineered to remain functional under thermal stress.
High-Temperature Viscosifiers
Synthetic polymers such as AMPS-based copolymers provide stable viscosity and suspension capability.
High-Temperature Fluid Loss Additives
Modified lignite, sulfonated asphalt, and HT polymer blends help maintain filtration control up to 180°C or more.
Shale Inhibitors
Besides KCl and glycols, amine-based and encapsulating inhibitors can significantly reduce shale swelling.
Lubricants
HT-stable lubricants reduce torque and drag without breaking down at elevated temperatures.
pH and Alkalinity Control Agents
Caustic soda, potassium hydroxide, and buffers ensure proper alkalinity to protect polymers from thermal degradation.
Choosing additives with proven high-temperature ratings is essential.
High-temperature water-based drilling fluids often lose low-shear-rate viscosity, weakening hole cleaning and suspension.
Engineers must optimize:
Yield Point (YP): to maintain cuttings transport.
Gel Strength: to suspend cuttings during static periods.
Plastic Viscosity (PV): influenced by solids content and temperature.
Using HT-resistant viscosifiers and proper solids control equipment helps maintain rheology throughout the well.
In high-temperature environments, reactive shales can destabilize quicker.
Effective strategies include:
reducing water activity with salts,
adding encapsulators to protect cuttings,
using glycols to reduce clay-water interaction,
adding amine-based inhibitors for extreme stability.
Selecting the right inhibitor package is critical for wellbore integrity.
High temperatures accelerate clay dispersion; therefore, solids can build up quickly.
Best practices:
use fine screens on shale shakers,
employ centrifuges for ultra-fine solids,
maintain low-gravity solids under 5%,
monitor contamination from drilling breaks or reactive zones.
Good solids management directly extends mud life under high temperature.

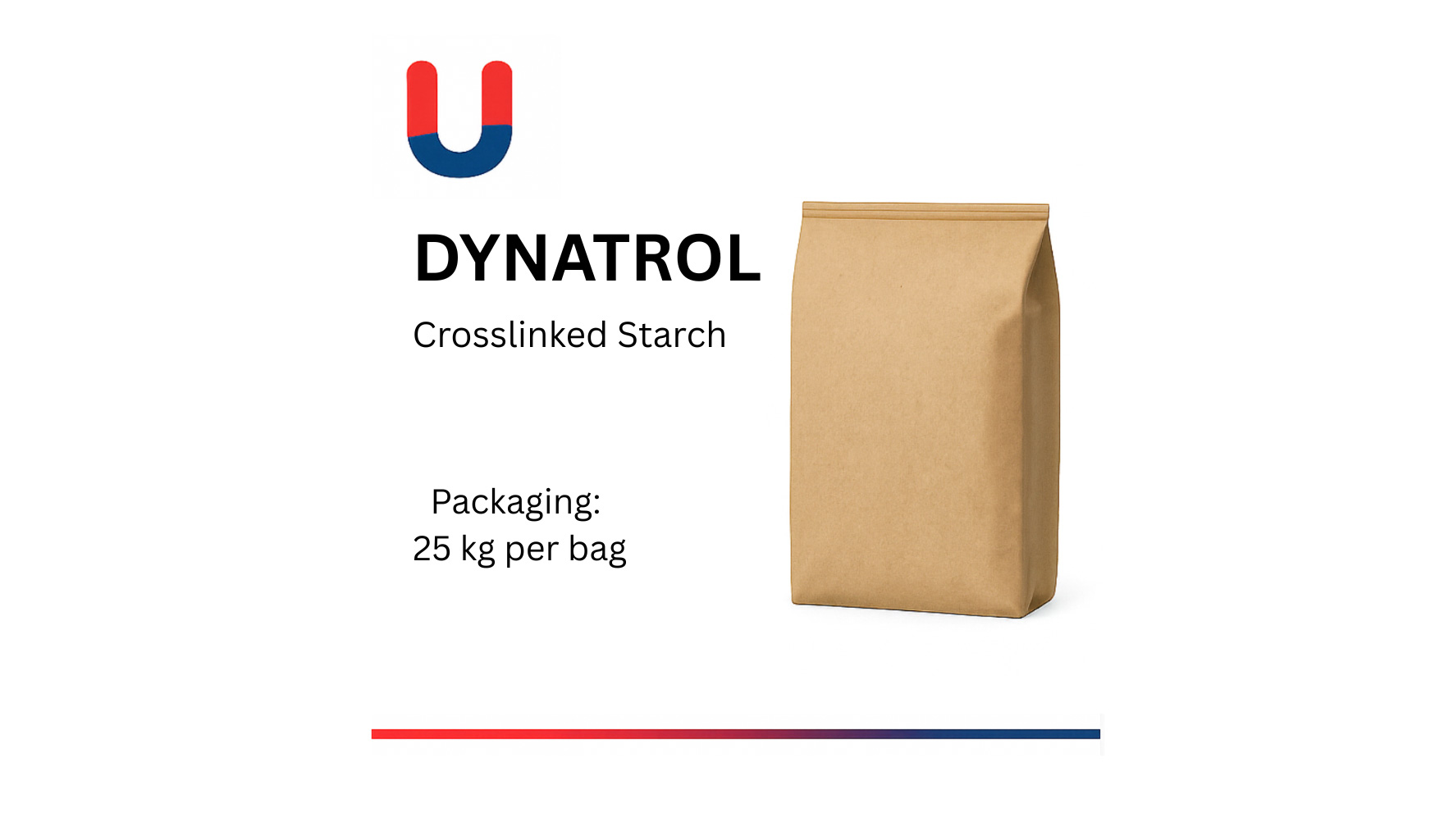

( Crosslinked Starch )
Before pumping the fluid into a high-temperature well, simulate conditions through:
HTHP filtration tests
Hot rolling aging tests (16–72 hours)
Thermal stability testing of polymers
Rheology measurements across temperature ramps
Shale dispersion and recovery tests
Lab validation helps predict field performance and prevent failures.
Even the best-designed system requires real-time monitoring in high-temperature wells.
Track:
viscosity changes,
gel strength trends,
fluid loss performance,
inhibition effectiveness,
salt and solids concentration,
pH and alkalinity levels.
Proactive adjustments ensure a stable drilling fluid throughout the operation.
Selecting the right water-based drilling fluid for high-temperature wells requires a systematic approach: understanding downhole temperature, choosing a thermally stable fluid system, incorporating high-performance additives, and monitoring fluid behavior throughout the well.
A well-designed high-temperature water based drilling fluid additives not only improves wellbore stability but also enhances rate of penetration (ROP), reduces NPT, and ensures safe, efficient drilling operations.
